Ophthalmic Ultrasound Scanner: Vsono-OP1
2-years warranty

Ophthalmic Ultrasound Scanner: Vsono-OP1

Display Mode: B, B+B, B+A, A.

Hint: preset keyword.

Screen: 15-inch LCD.

Built-in battery: 4 hours +User-defined report template



What’s in the box?

  • Ophthalmic Ultrasound Scanner: Vsono-OP1
  • Charger
  • 12-month warranty
Original price was: €7,490.00.Current price is: €6,780.00.
2-Year Warranty

30 Days Money Back Guarantee

Fast Free Delivery Worldwide

The Ophthalmic Ultrasound Scanner: Vsono-OP1 provides A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed with vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

The Ophthalmic Ultrasound Scanner: Vsono-OP1 provides A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed with vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

B scan:

Frequency: 10MHz/20MHz (optional) ,Magnetic driven, noiseless
Scanning Mode: Sector Scanning
Magnify: Multi continuous magnification, Real-Time magnification
Resolution: Lateral ≤0.3mm; Vertical≤0.2mm
Geometry position precision: Lateral ≤10%; Vertical≤5%
Depth:60mm
Enhance the part of the vitreous body  and retina
Gain of probe:30dB-105dB
Scanning Angle:53°
Gray Scale: 256
False Color: Multi-colors. OCT
measurement type: multigroup distances, perimeters, and areas
Image postprocessing: multiple curves processing, Pseudo-color processing curve
Format: AVI JPG format image output



A scan:

Frequency:10MHz,  with LED
Depth: 40mm
Precision:±0.05 mm
Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length, and average
Eye mode: Phakic / Aphakic / Dense / Various IOL
IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY,BINKHORST-II, HAIGIS
Stat. Calculation: Average and standard deviation
Store: 10 Scanning results for each eye
Others:
Display Mode: B, B+B, B+A, A
Hint: preset keyword
Case Search: Multi-keywords
Screen: 15 inch LCD
Built-in battery: can last 4 hours
User-defined report template poor credit secured loans

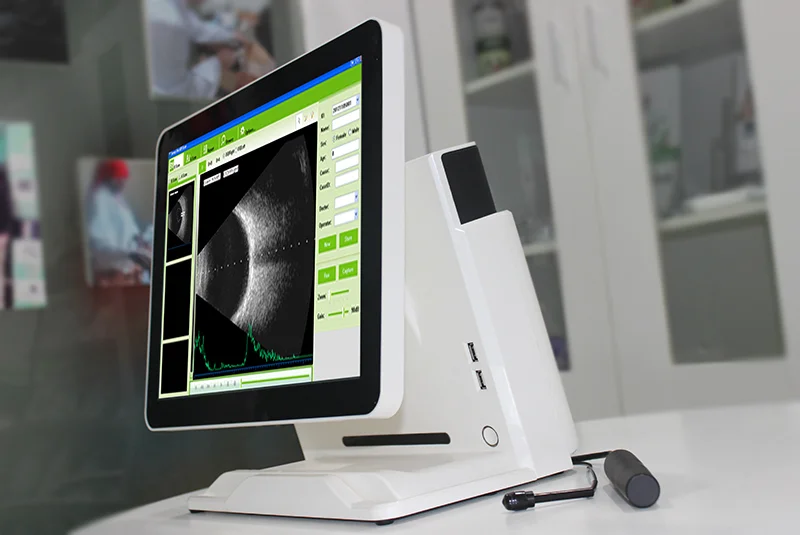

Ophthalmic Ultrasound Vsono-OP1 User Interface:

The Ophthalmic Ultrasound Scanner: Vsono-OP1 provides A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed with vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

Vsono-OP1 Scan Results:

The Ophthalmic Ultrasound Scanner: Vsono-OP1 provides A/B Scan with normal, vitreous body enhancement, retina observation mode, mainly used for diagnosis of intraocular diseases, display the location, shape range of the focus of infection and the relationship with the surrounding tissue. Can be diagnosed with vitreous opacity, retinal detachment, eye base tumors, etc. eye diseases. A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.
Certifications:

CE, ISO
