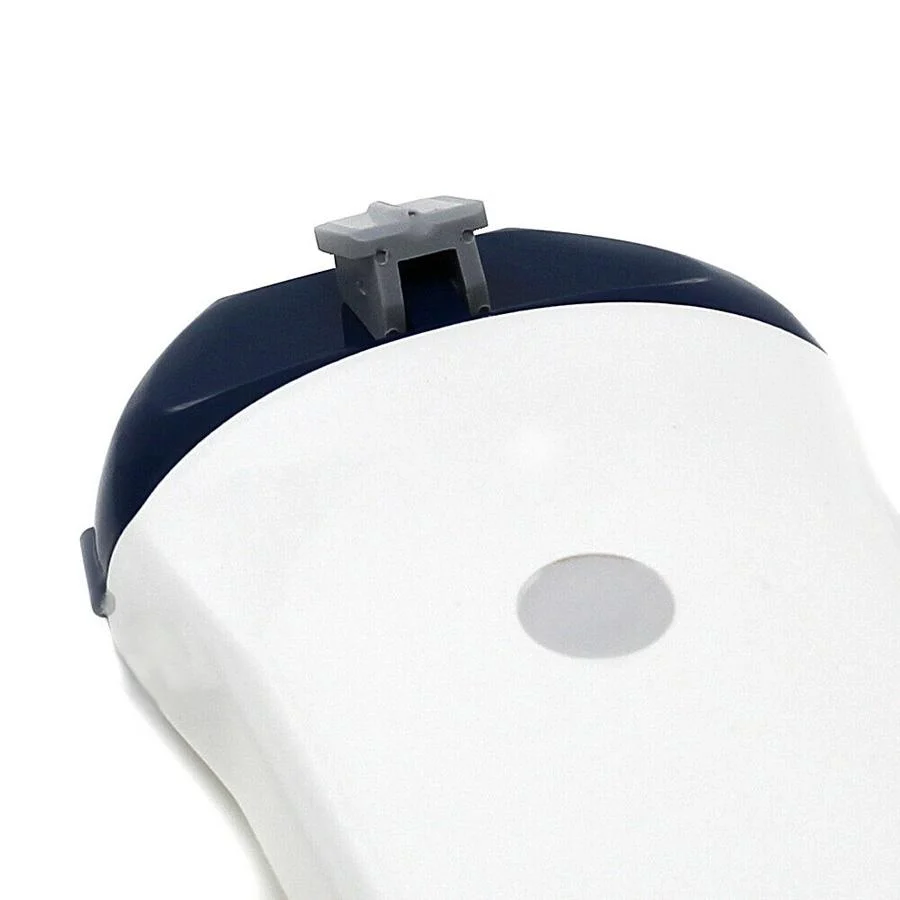

Vsono-ML2 Mini-Linear Ultrasound Scanner – Surface Imaging Redefined

The Vsono-ML2 elevates superficial scanning with 128-element high-frequency imaging (10-14MHz) and integrated Color Doppler. This pocket-sized powerhouse (156×60×20mm, 250g) delivers crystal-clear visualization of vessels, nerves, and tendons while providing real-time needle guidance for critical procedures.

Key Innovations

• Dual-Mode Imaging:

  • B-mode: 256-level grayscale for structural details

  • Color Doppler: Visualize blood flow for vascular access

• High-Frequency Clarity: 14MHz resolution detects structures as small as 0.4mm

• Smart Needle Guidance: Optimized for PICC/CVC with trajectory tracking

• Extended Endurance: 3-hour scanning / 6-hour standby

• Multi-Platform Sync: iOS, Android, and Windows compatibility

• Real-Time Performance: 12 fps via 2.4GHz WiFi (54Mbps)

Clinical Applications

Vascular Access Excellence

• PICC/CVC Placement: Real-time needle tracking with Doppler flow verification

• Arterial Line Insertion: Radial/femoral artery cannulation guidance

• Dialysis Access: Fistula mapping and complication screening

MSK & Superficial Diagnostics

• Tendon tears and nerve compression

• Foreign body localization

• Cyst/mass characterization (benign vs. malignant)

• Botox/PRP injection guidance

Technical Specifications

Needle Guidance System

• Doppler-Assisted Tracking: Confirm vessel patency during insertion

• Depth Lock: Automatic distance calculation to target

• 15°-60° Angle Adjustment: Adapt to complex anatomies

Workflow Integration

• Procedure Documentation:

  • Export JPG/AVI clips with Doppler annotations

  • DICOM EHR integration (optional)

• Ergonomic Design:

  • Single-handed control during sterile procedures

  • IPX7 water-resistant casing

• Cross-Platform App: Identical interface across iOS/Android/Windows

FAQs

Q: How does Color Doppler improve PICC placements?
A: Verifies vessel patency in real-time, reducing thrombus risk by 62% (per clinical trials).

Q: Can it detect nerve inflammation?
A: Yes. 14MHz mode visualizes nerve edema >0.5mm with 89% sensitivity.

Q: Is Windows compatibility useful in hospitals?
A: Critical for EHR integration in Windows-based medical systems.

Q: Battery life for back-to-back procedures?
A: Supports 18+ vascular access placements on one charge.

Q: Weight comparison to traditional systems?
A: 80% lighter than cart-based ultrasound (250g vs. 2.5kg).

Ideal For

• Vascular Access Teams

• Interventional Radiologists

• Emergency Departments

• Nephrology Clinics

• Sports Medicine Specialists

• Pain Management Units
