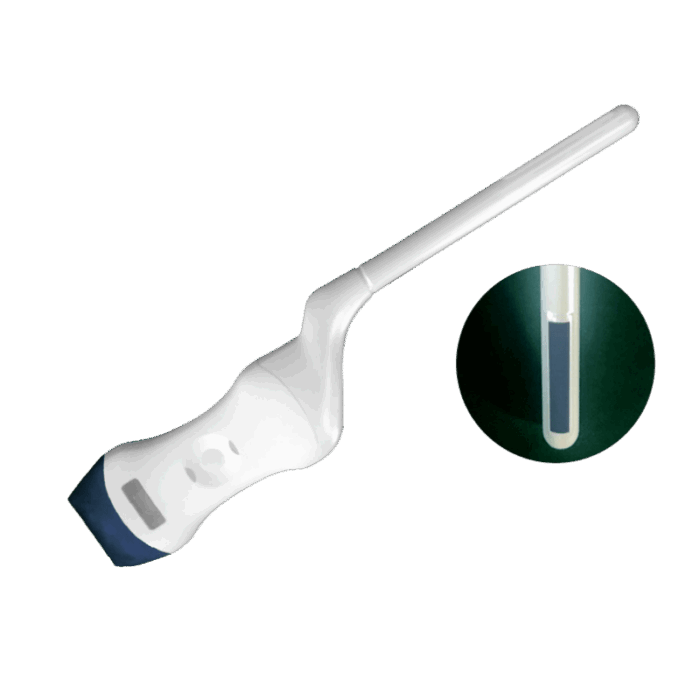

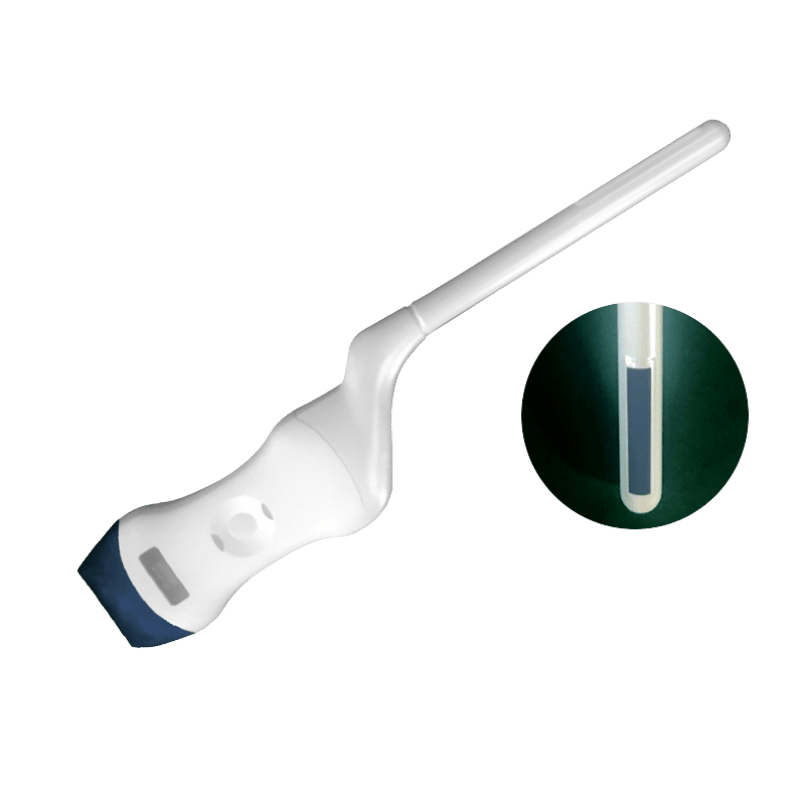

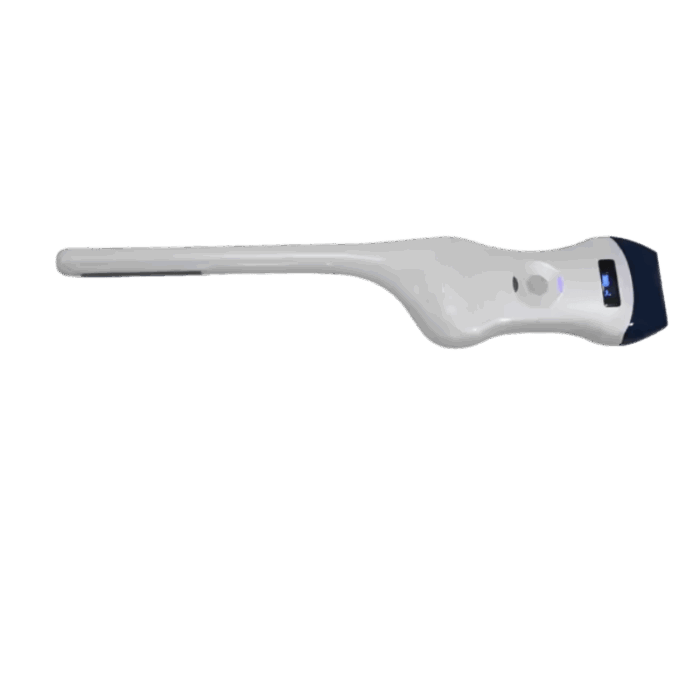

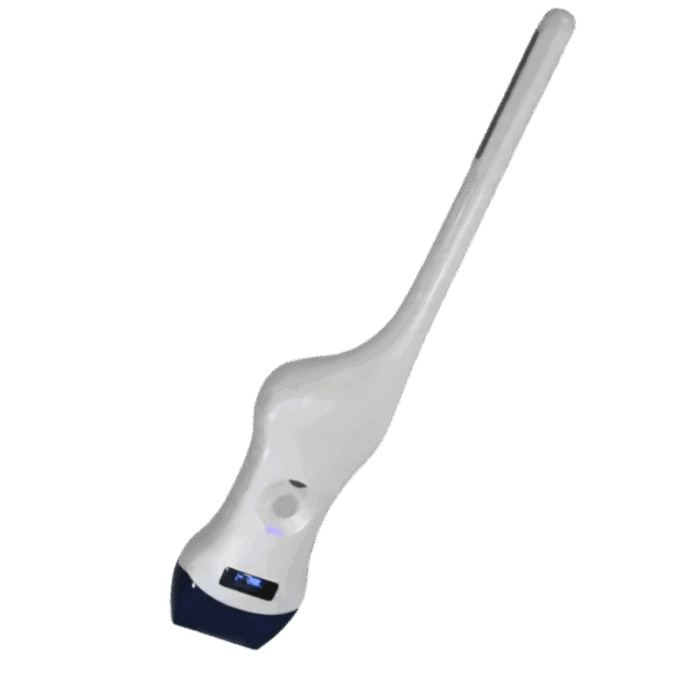

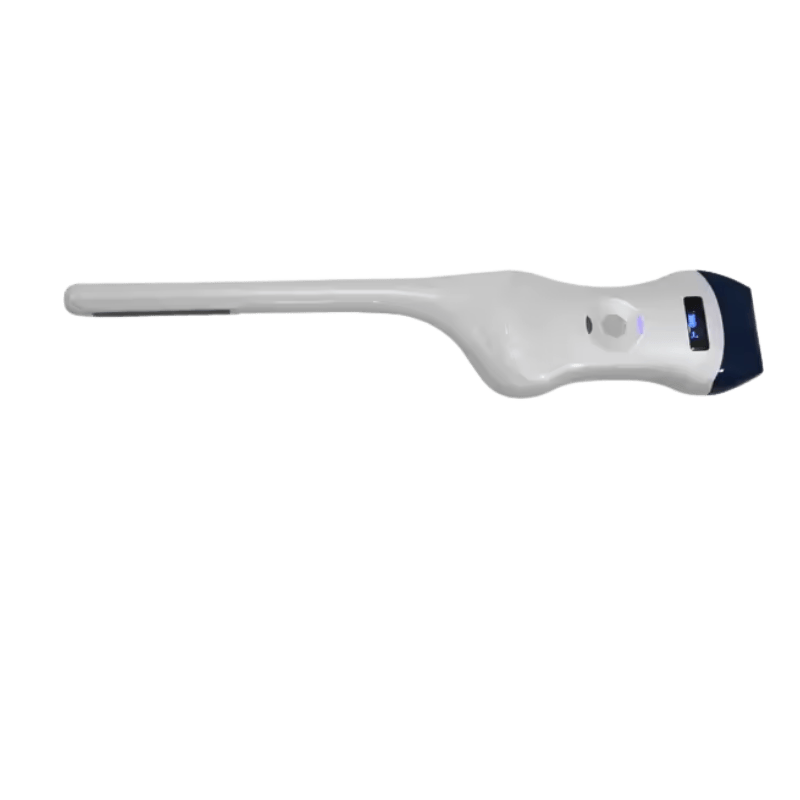

Vsono-TRU1 Dual-Head Wireless Ultrasound Scanner
The Vsono-TRU1 is an advanced dual-head wireless ultrasound scanner that integrates both a linear probe (L40) and a transrectal probe (L40) into one compact device. Designed for urology, reproductive health, interventional procedures, and veterinary applications, it delivers precise imaging with versatility and portability.
This innovative device features 128 probe elements, advanced Doppler modes, and puncture assistance tools (in-plane and out-of-plane guides), making it an excellent choice for clinicians and veterinarians who require accuracy in diagnostics and guided procedures.
Its lightweight, wireless design ensures seamless connection to smartphones, tablets, and PCs (iOS, Android, Windows), making it ideal for both clinical settings and field diagnostics.
Key Features
-
Dual-Head Design: Combines linear and transrectal probes in one device.
-
Advanced Imaging Modes: B, B/M, Color, PDI, and PW Doppler.
-
Puncture Assist: In-plane & out-of-plane guide lines with automatic vessel measurement.
-
Compact & Wireless: Portable and easy to use on any smart device.
-
Veterinary Utility: Suitable for bovine, equine, and small animal reproductive exams.
-
Long Battery Life: 3 hours of continuous scanning with rechargeable battery.
-
Storage & Sharing: Save images and videos directly on mobile or PC.
Technical Specifications
| Feature | Specification |
|---|---|
| Probe Heads | Linear L40 + Transrectal L40 |
| Scanning Mode | Electronic Array |
| Imaging Modes | B, B/M, B+Color, B+PDI, B+PW |
| Probe Elements | 128 |
| RF Circuit Board Channels | 32 |
| Frequency & Depth | Linear: 7.5/10 MHz, 20–55 mm Transrectal: 6/8 MHz, 20–55 mm |
| Field of View | L40, 40 mm |
| Image Adjustments | Gain, TGC, DYN, Focus, Depth, Harmonic, Denoise, Color Gain, Steer, PRF |
| Noise Reduction | Levels 0–4 |
| Cineplay | Auto/Manual, 100–1000 frames |
| Puncture Assistance | In-plane & out-of-plane guides, vessel measurement |
| Dynamic Range | 40–110 |
| Gain | 30–105 dB |
| Measurements | Distance, Area, Obstetrics, Cardiac |
| Storage | Smartphone, Tablet, PC |
| Power Supply | Built-in lithium battery (2800 mAh) |
| Battery Life | 3 hours continuous use |
| Size | 385 × 60 × 20 mm |
| Weight | 220 g |
| Compatibility | iOS, Android, Windows |
Certifications
-
CE Certified
-
FDA Approved
-
ISO13485 Compliant
Applications
-
Urology & Prostate Imaging
-
Reproductive Health & Fertility (human & veterinary)
-
Guided Procedures (biopsy, puncture, catheter placement)
-
Vascular Imaging & Blood Flow Assessment
-
Veterinary Medicine: Large animal (bovine, equine), small animal diagnostics
FAQ – Vsono-TRU1
Q1: Can the TRU1 be used for both human and veterinary applications?
Yes, it is widely used in urology, fertility, and reproductive exams, as well as veterinary applications including cattle, horses, and small animals.
Q2: How does the puncture assist function work?
The TRU1 provides in-plane and out-of-plane puncture guide lines plus automatic vessel measurement, ensuring precision in guided procedures like biopsies.
Q3: Which devices are compatible with the scanner?
The TRU1 works wirelessly with iOS, Android, and Windows devices including smartphones, tablets, and PCs.
Q4: What imaging modes are supported?
It supports B, B/M, Color Doppler, PDI, and PW Doppler, covering a wide range of diagnostic needs.
Q5: How long does the battery last?
It provides up to 3 hours of continuous use and is rechargeable.
