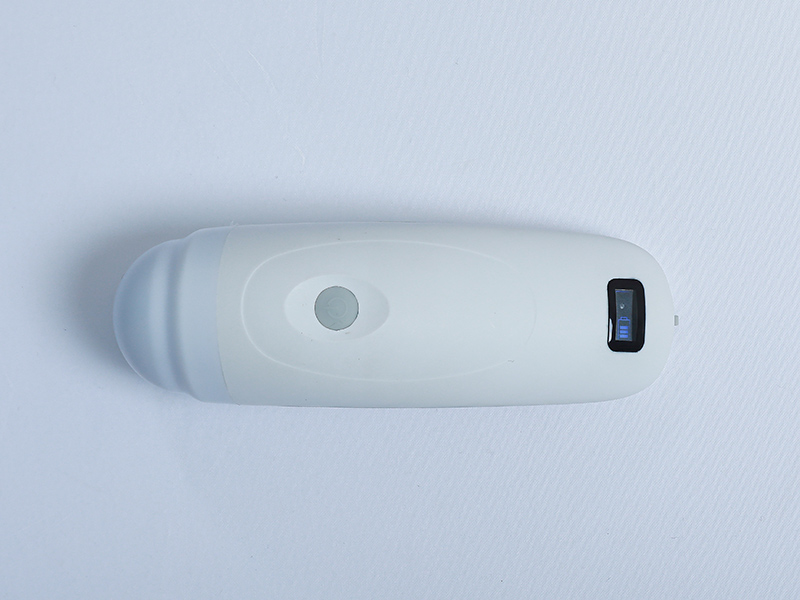

The VSONO-BL2 Wireless Bladder Ultrasound Scanner is a compact and portable imaging solution designed for accurate urinary bladder volume measurement. This handheld ultrasound probe connects directly to smartphones or tablets via internal WiFi, eliminating bulky consoles and external WiFi requirements. With fast scanning, high accuracy, and seamless integration with iOS devices, it is the ideal solution for urology, gynecology, obstetrics, ICU, rehabilitation, and emergency medicine.
Key Benefits of the VSONO-BL2
-

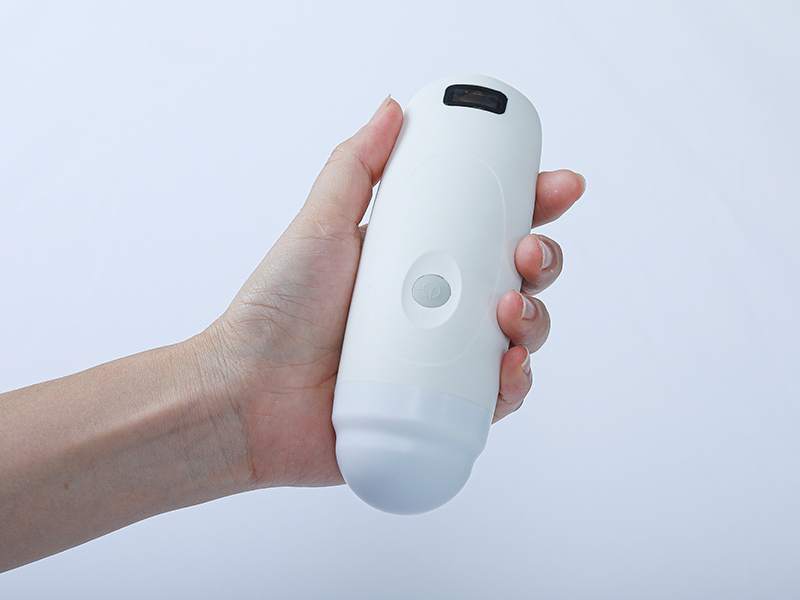

Portable & Lightweight: Only 200g, designed for easy use in clinics, hospitals, and emergency settings.
-

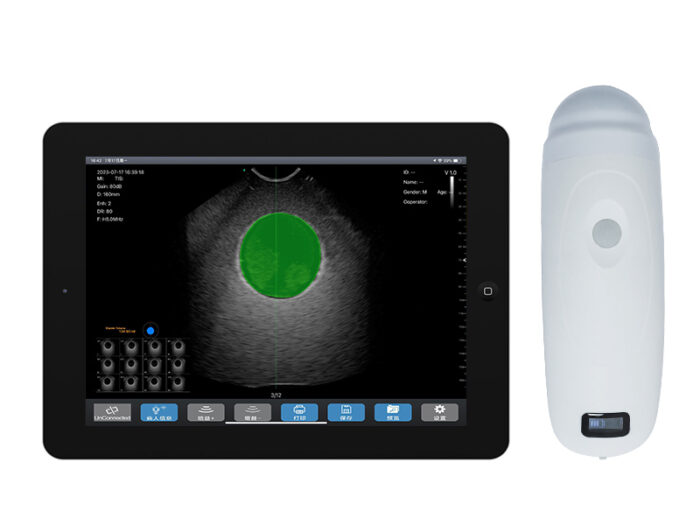

Wireless Technology: Direct WiFi connection between the probe and tablet—no cables or external signals required.
-
High Accuracy: Reliable bladder volume measurement with < 5% error margin.
-
Fast Results: Bladder scanning and processing completed in under 2 seconds.
-
Wide Measurement Range: From 50 mL to 2000 mL bladder capacity.
-
Advanced Imaging: Electronic convex array with 4D scanning provides sharp, distortion-free images.
-
Broad Coverage: R20 probe ensures wide scanning angles for better visualization.
-
Precision Engineering: High-precision rotary encoder—no need for regular calibration.
-
Intelligent Algorithms: Bladder wall recognition and edge detection improve diagnostic accuracy.
-
Real-Time Guidance: Supports safe Foley catheter insertion and removal procedures.
Specifications of the VSONO-BL2
| Feature | Details |
|---|---|
| Scan Mode | Electronic array capability |
| Device Compatibility | Apple iOS smartphones and tablets |
| Measurement Range | 50 mL – 2000 mL |
| Accuracy | Automatic measurement error < 5% |
| Scanning Speed | Less than 2 seconds per scan |

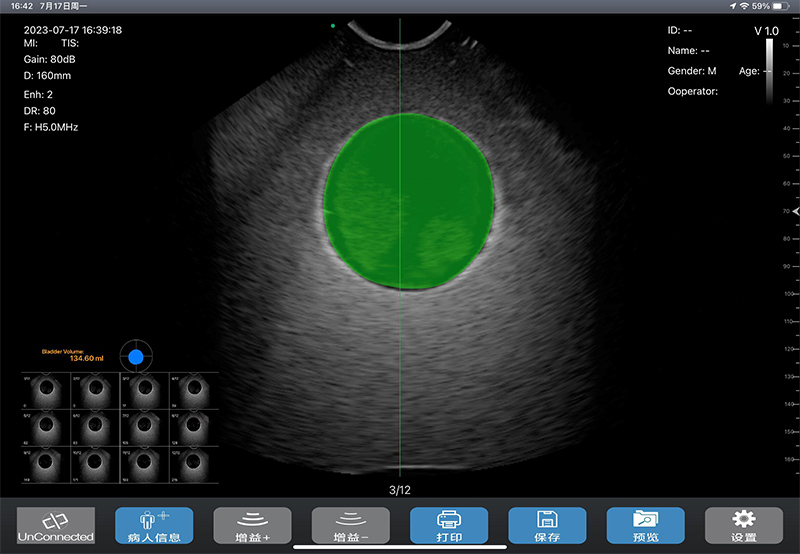

| Display Quality | Real-time imaging at 15 frames per second |
| Data Storage | Save ultrasound images directly on the connected device |
| Printing | Compatible with external wireless thermal printers |
| Battery Capacity | Over 200 bladder scans per single charge |
| Charging Method | USB cable charging |
| Dimensions | 170 × 52 × 55 mm |
| Weight | Lightweight handheld design, 200 g |
Clinical Applications
The portable bladder ultrasound scanner VSONO-BL2 is suitable for multiple medical specialties:
-
Urology: Bladder volume assessment, urinary retention, catheterization guidance, and surgical planning.
-
Obstetrics: Postpartum stress evaluation, incontinence detection, and pelvic floor muscle assessment.
-
Gynecology: Post-pelvic surgery evaluation of neuromuscular injury.
-
ICU (Intensive Care): Optimize catheterization timing to reduce infection risk.
-
Neurology: Evaluate detrusor and sphincter function in patients with neurogenic bladder.
-
Nursing: Determine safe timing for catheter removal after surgery.
-
Rehabilitation: Monitor pelvic floor rehabilitation progress.
-
Emergency Medicine: Rapid diagnosis of acute urinary retention and trauma catheterization guidance.
-
Radiotherapy: Assess bladder function during pelvic or bladder tumor treatments.
Why Choose the VSONO-BL2?
The VSONO-BL2 wireless bladder ultrasound probe combines speed, accuracy, and portability, making it a valuable tool for hospitals, clinics, and rehabilitation centers. By replacing traditional bulky systems with a compact and smart solution, healthcare professionals can achieve reliable bladder imaging anytime, anywhere.
