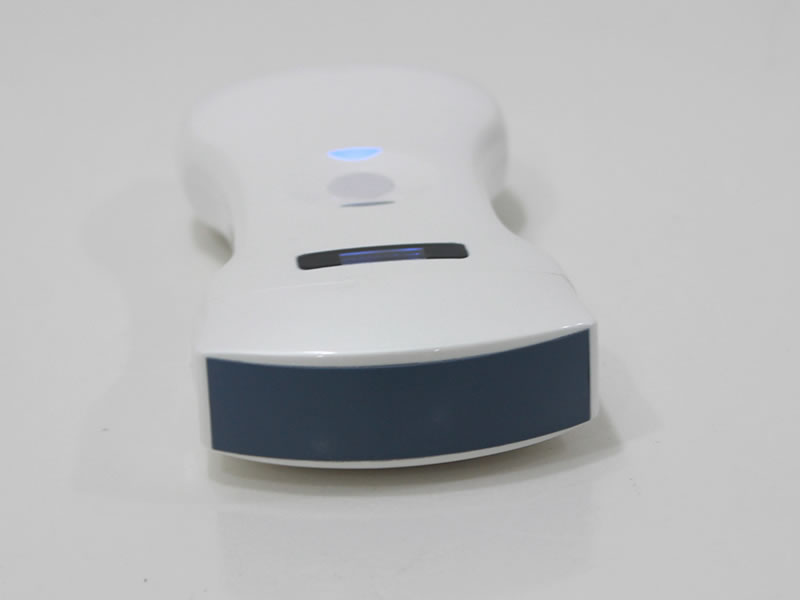

Triple Head Color Doppler Ultrasound Scanner: Vsono-CL4

Original price was: €3,440.00.Current price is: €2,950.00.

  • 3-in-1 Probe: Linear, Convex & Phased Array in one device

  • High-Resolution Imaging: 192-element transducer for clear diagnostics

  • Advanced Modes: B, BM, Color Doppler, PW & PDI

  • Precise Measurement Tools: OB/GYN, cardiac & vascular calculation

Add to compare
Add to wishlist
4 People watching this product now!
Description

Vsono-CL4 – Triple-Head Color Doppler Ultrasound Scanner

The Vsono-CL4 is a cutting-edge wireless ultrasound scanner that combines linear, convex, and phased array probes into a single compact device.
Built for versatility, portability, and accuracy, it delivers high-resolution imaging for cardiac, abdominal, obstetric, vascular, and general diagnostics — all from your smartphone, tablet, or computer.

Key Features

  • Triple Probe in One Device
    Linear, Convex, and Phased Array probes integrated into a single scanner for unmatched versatility.

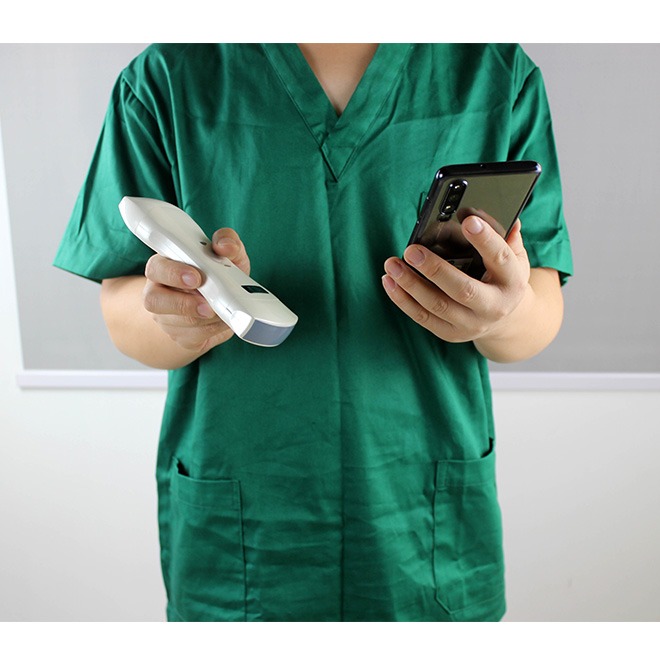

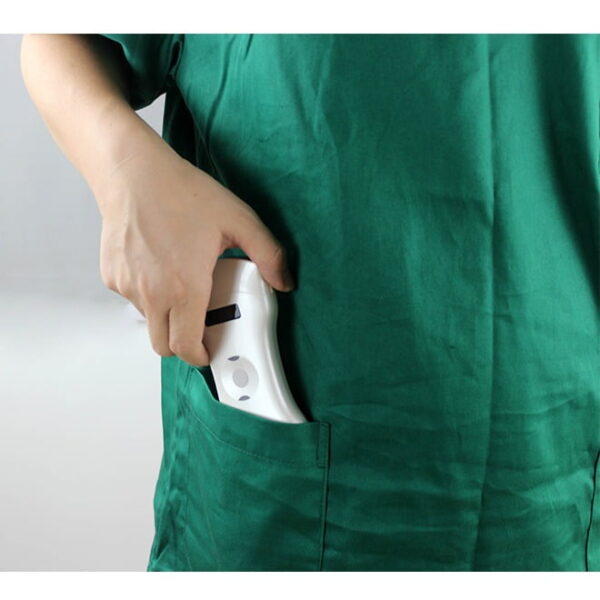

  • Wireless and Portable
    Lightweight at just 220 g, designed for mobility in hospitals, clinics, and fieldwork.

  • High-Resolution Imaging
    Powered by a 192-element transducer for precision in every scan.

  • Multiple Imaging Modes
    B, BM, Color Doppler, PW, and PDI for advanced diagnostic applications.

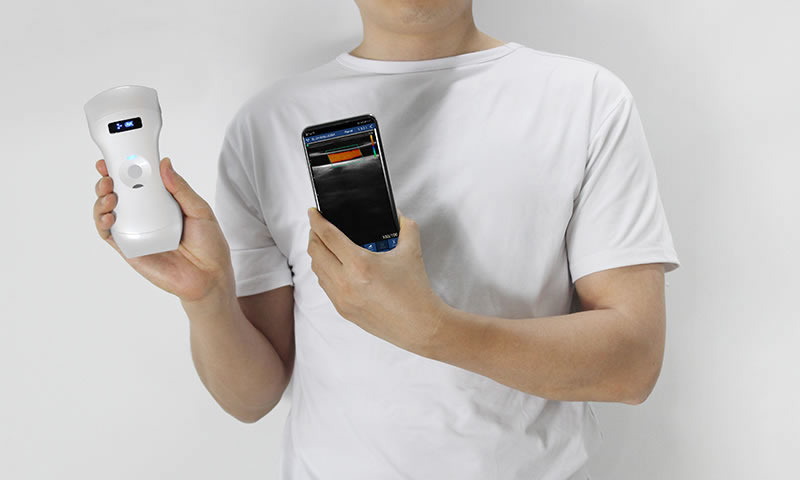

  • Cross-Platform Compatibility
    Seamlessly works with iOS, Android, and Windows devices.

  • Reliable Battery Life
    Up to 3 hours continuous scanning, with wireless charging included.

  • Advanced Measurement Tools
    Obstetric, cardiac, vascular, and general measurements with precise calculation functions.

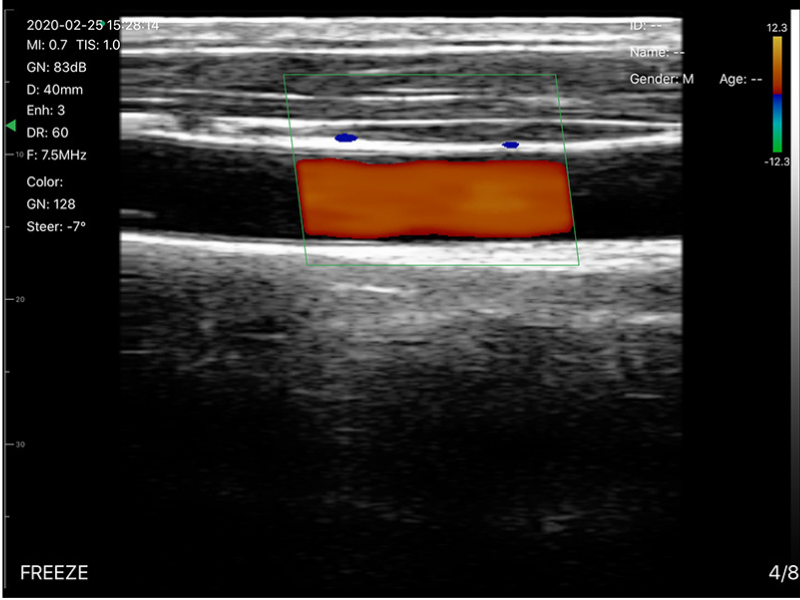

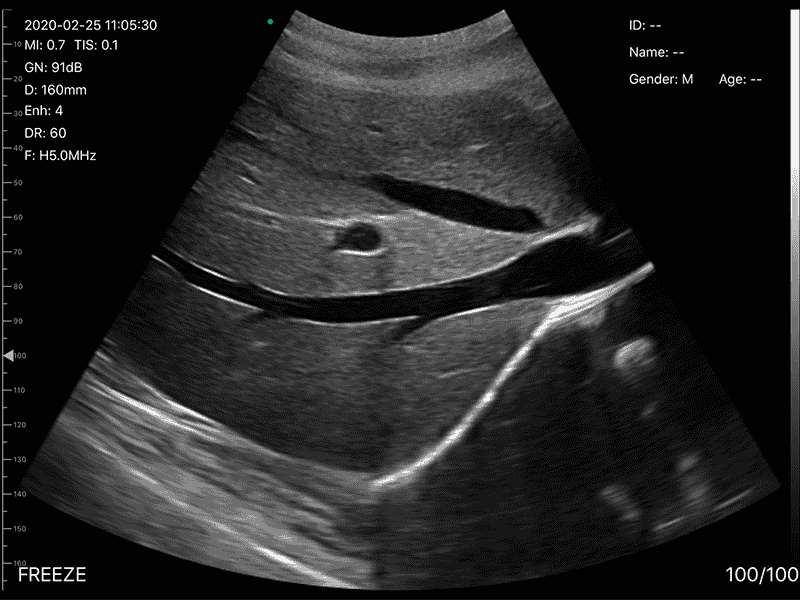

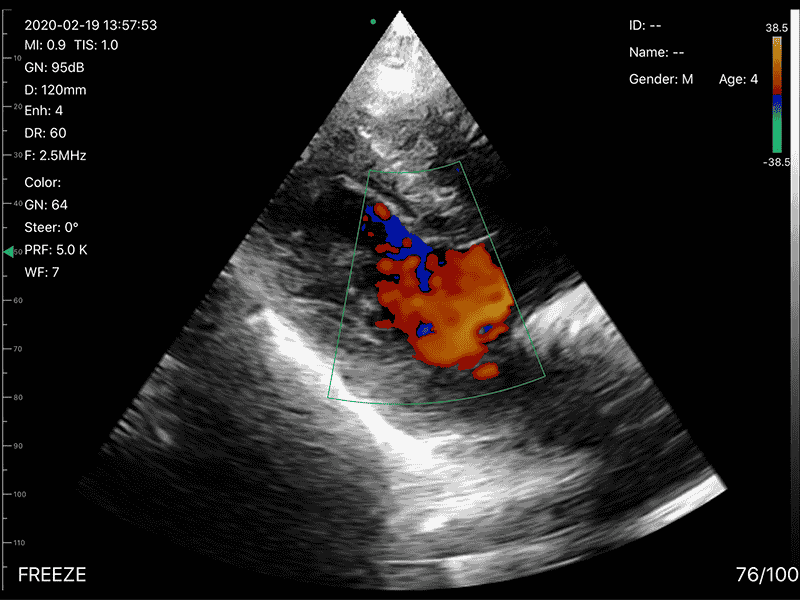

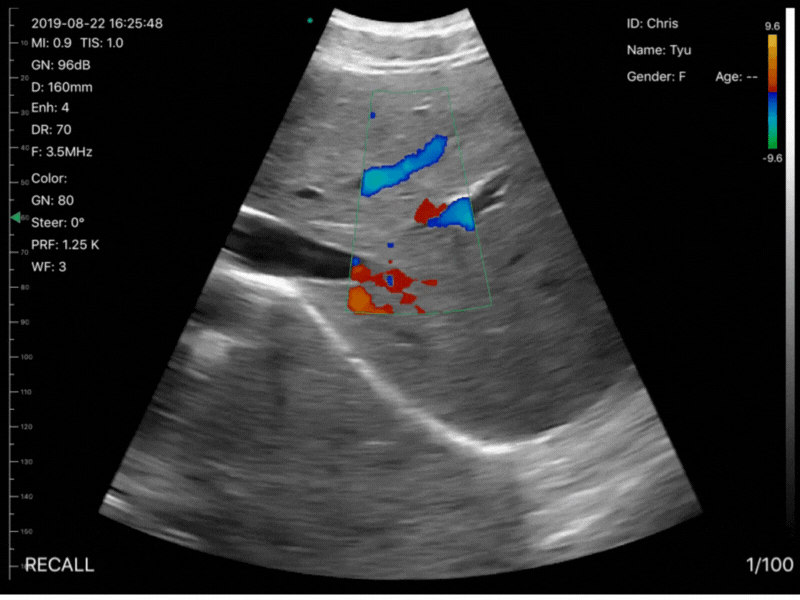

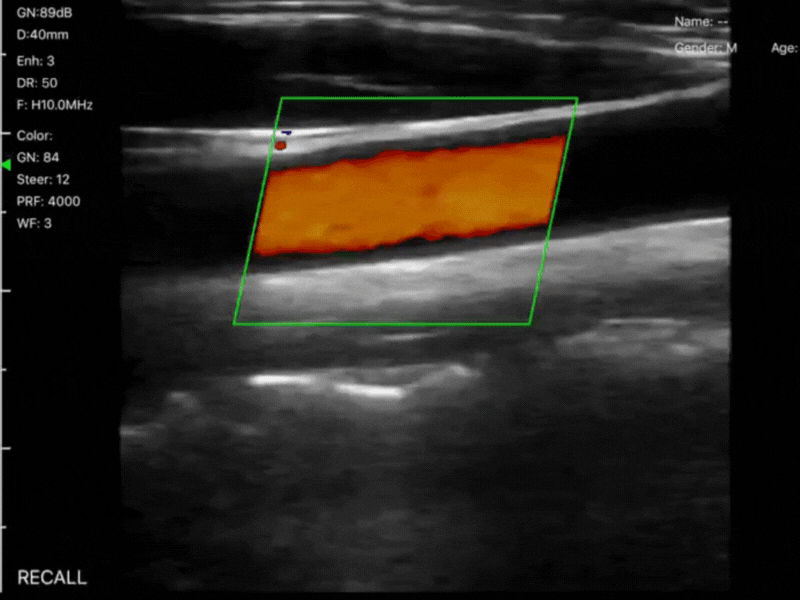

Scan Results

Scan Results

Technical Specifications

Feature Specification
Scanning Mode Electronic Matrix
Number of Elements 192
Display Modes B, BM, Color Doppler, PW, PDI
Frequency Range Convex: 3.5–5 MHz / Linear: 7.5–10 MHz
Scan Angle & Width Convex: 50° / Linear: 40 mm / Phased Array: 80°
Image Adjustments Gain, Focus, Harmonic, Denoise
Frame Rate 18 fps
Battery Life 3 hours
Charging Wireless
Dimensions 156 × 60 × 20 mm
Weight 220 g
OS Compatibility iOS, Android, Windows

Device Compatibility

  • Smartphones: iOS & Android

  • Tablets: iOS, Android, Microsoft

  • Computers: Windows & iOS

Certifications

  • FDA Approved

  • CE Certified

  • ISO13485 Compliant

Clinical Applications

  • Cardiology & Vascular: Echocardiography, valvular disease, carotid studies, peripheral vessels

  • Obstetrics & Gynecology: Pregnancy checks, fetal growth, placenta, ovarian/uterine imaging

  • Abdominal: Liver, kidney, gallbladder, pancreas, spleen, AAA screening

  • Musculoskeletal: Tendons, ligaments, joints, guided injections, sports injuries

  • Emergency / POCUS: FAST, lung scans, bedside cardiac/abdominal, vascular access

  • Other: Thyroid, breast, prostate, bladder, soft tissue, paediatric imaging

Why Choose Vsono-CL4?

  • All-in-One Imaging – Covers multiple diagnostic areas with a single device.

  • Professional-Grade Accuracy – 192-element probe ensures reliable, clear scans.

  • Portable & Wireless – Perfect for mobile diagnostics and point-of-care imaging.

  • Lightweight & Durable – Designed for daily clinical use without compromise.

How to Use Vsono-CL4

Watch the step-by-step video tutorial:

FAQ – Vsono-CL4

What makes the Vsono-CL4 different from other portable ultrasound scanners?

The CL4 integrates three probes (linear, convex, phased array) into one compact device, reducing the need for multiple scanners while covering cardiac, abdominal, vascular, and OB/GYN applications.

Is the Vsono-CL4 compatible with all devices?

Yes. It connects wirelessly to smartphones, tablets, and computers on iOS, Android, and Windows platforms.

Can the CL4 be used for cardiac imaging?

Yes. The phased array probe supports cardiac applications, offering excellent imaging of the heart and blood flow with Color Doppler and PW modes.

What certifications does it carry?

The Vsono-CL4 is FDA approved, CE certified, and ISO13485 compliant, meeting global medical standards.

Is it suitable for emergency or field use?

Absolutely. Its lightweight 220 g build and wireless functionality make it ideal for point-of-care, mobile diagnostics, and emergency settings.

Shipping & Delivery

  • Free Worldwide Shipping – Enjoy free shipping on all orders, no matter the destination.

  • Global Delivery – We ensure safe and reliable delivery to all countries worldwide.

  • Fast Processing – Orders are dispatched quickly to minimize waiting time.

  • Delivery Time – Estimated delivery within 3 to 5 business days.

  • Secure Packaging – Each ultrasound scanner is carefully packed to guarantee safe arrival.

  • Order Tracking – A tracking number will be provided to monitor your shipment at any time.
