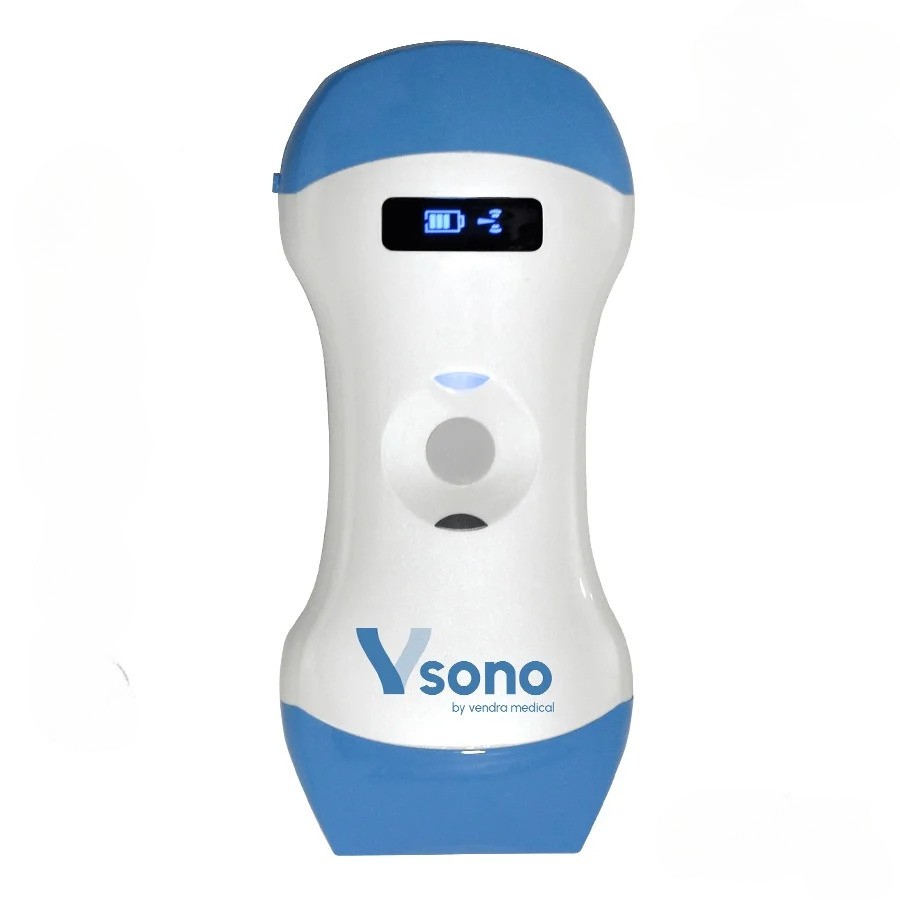

Triple-Headed Color Doppler Ultrasound Scanner: Vsono-CL1

Vsono-CL1 Triple-Headed Ultrasound Scanner – Three Probes, One Revolution

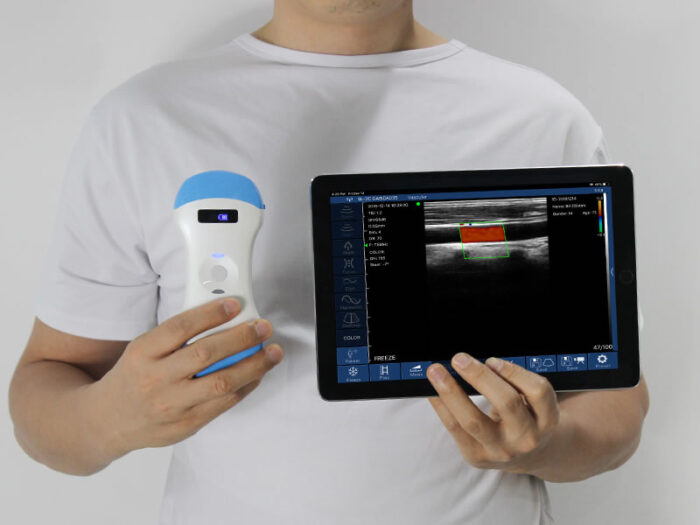

The Vsono-CL1 integrates convex (3.5/5MHz), linear (7.5/10MHz), and phased array (2.5/3.5MHz) probes into a single wireless device (156×60×20mm, 220g). Engineered for multi-specialty point-of-care diagnostics, this 128-element matrix scanner delivers real-time B-mode, Color Doppler, PW, and PDI imaging via smartphones, tablets, or Windows devices 4.

Display Depth: Convex 90/160/220/305mm, Linear 20/40/60/80mm

Scan angle and width: convex 70°, Phasedarray 80°,  linear 40mm

Key Advantages

• Triple-Probe Versatility:

  • Convex: Deep abdominal/OB-GYN scans (50° sector)

  • Linear: High-resolution MSK/vascular imaging (40mm width)

  • Phased Array: Cardiac/pediatric assessments (80° sector)

• Doppler Excellence: Color flow mapping, pulsed-wave quantification, and microvascular PDI

• Unified Workflow: Switch probes digitally—no physical interchange needed

• High-Speed Imaging: 18 fps frame rate via 5G WiFi (450Mbps)

• Extended Use: 3-hour battery with wireless charging

• Certified Reliability: FDA/CE/ISO 13485 compliant for clinical use 4

Clinical Applications by Probe

Convex Probe (3.5/5MHz)

• OB-GYN: Fetal heartbeat monitoring, amniotic fluid quantification

• Abdominal: Liver/kidney evaluations, gallbladder assessments

• Emergency: FAST exams, trauma triage

Linear Probe (7.5/10MHz)

• MSK: Tendon tears, nerve compression, foreign bodies

• Vascular: Thrombosis screening, PICC line guidance

• Dermatology: Cyst depth mapping, filler injections

Phased Array Probe (2.5/3.5MHz)

• Cardiology: Cardiac chamber analysis, valve motion, EF estimation

• Pediatrics: Congenital heart defects, hip dysplasia (DDH)

• Pulmonary: Pleural effusion assessment, lung sliding visualization

Technical Specifications

Workflow Integration

• Multi-Platform App: Unified interface for all probes—measurements (obstetrics, vascular, cardiac) sync across devices

• Real-Time Collaboration: Share live scans with colleagues during teleconsultations

• DICOM Compliance: Seamless integration with hospital EHR systems

• Ergonomics: One-handed operation; IPX7-rated for disinfectant-safe use

FAQs

Q: Can I use all three probes simultaneously?
A: Switch digitally via the app in <3 seconds—no physical probe changes needed.

Q: Is it suitable for pediatric echocardiography?
A: Yes. The phased array probe resolves neonatal cardiac structures with 0.6mm resolution.

Q: How does it compare to cart-based triple-head systems?
A: 80% lighter, 60% cheaper, with identical clinical capabilities 57.

Q: Battery life for mixed-probe use?
A: 3+ hours—enough for 12+ abdominal, cardiac, and MSK exams.

Q: Does the app support automated measurements?
A: Yes. One-touch tools for EF%, fetal biometry, and stenosis velocity.

Scan Demonstration

Watch Triple-Probe Imaging Demo

Ideal For

• Cardiology Clinics: Replace dedicated echo machines for routine exams

• Emergency Teams: Single-device solution for trauma, vascular, and cardiac scans

• Pediatricians: Hip dysplasia screening + congenital heart checks

• Mobile Practices: Rural health workers, home-visit specialists

• Veterinary Medicine: Multi-species abdominal/MSK imaging
