22MHz High-Frequency Wireless Ultrasound: VSONO-ML3
€3,200.00 Original price was: €3,200.00.€2,850.00Current price is: €2,850.00.
-
Ultra-High Frequency (18/22MHz): Optimized for superficial imaging (10-25mm), allowing for distinct differentiation of the epidermis, dermis, SMAS, and fascia.
-
Vascular Mapping: Features Color, PDI, and PW Doppler
-
High-Definition Imaging: Equipped with a 192-element
-
Procedure Assist: Includes built-in In-Plane and Out-Plane puncture guides for precise needle tracking during injections or hyaluronidase administration.
-
Universal Compatibility: Save images (JPG/PNG) and video (MP4)

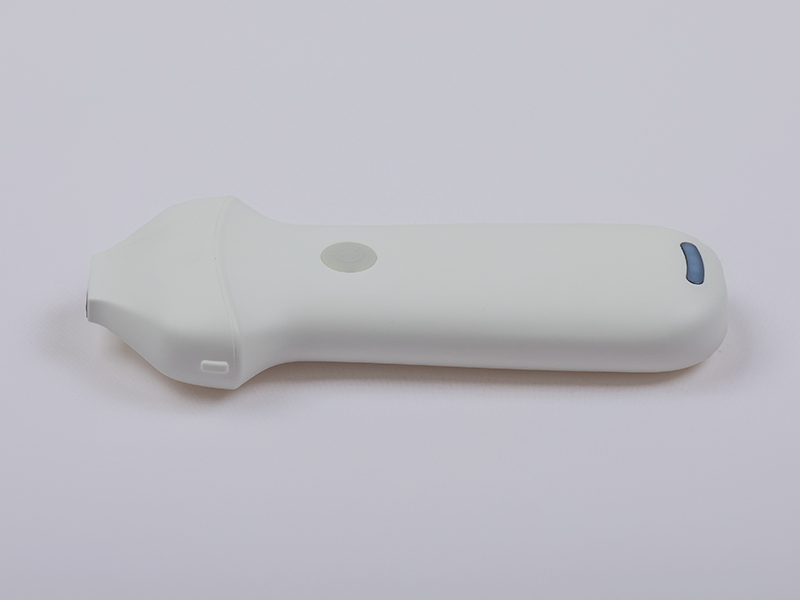

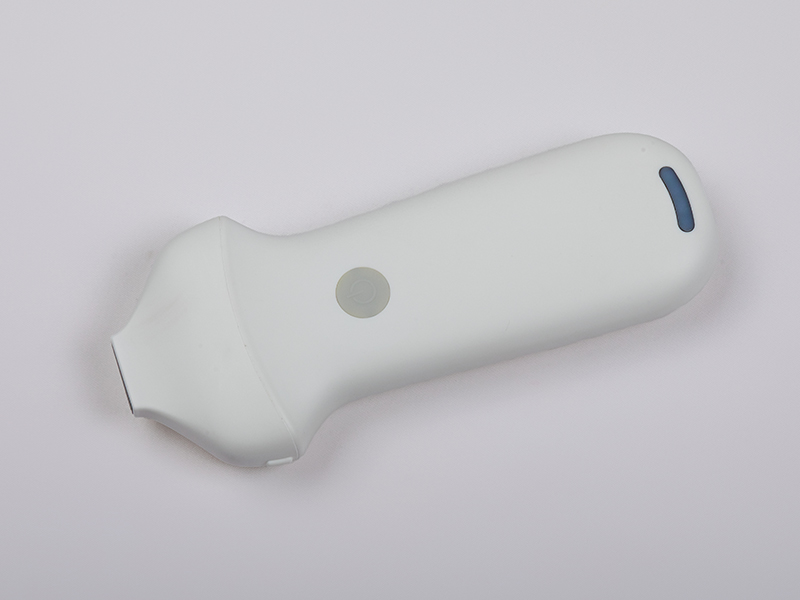

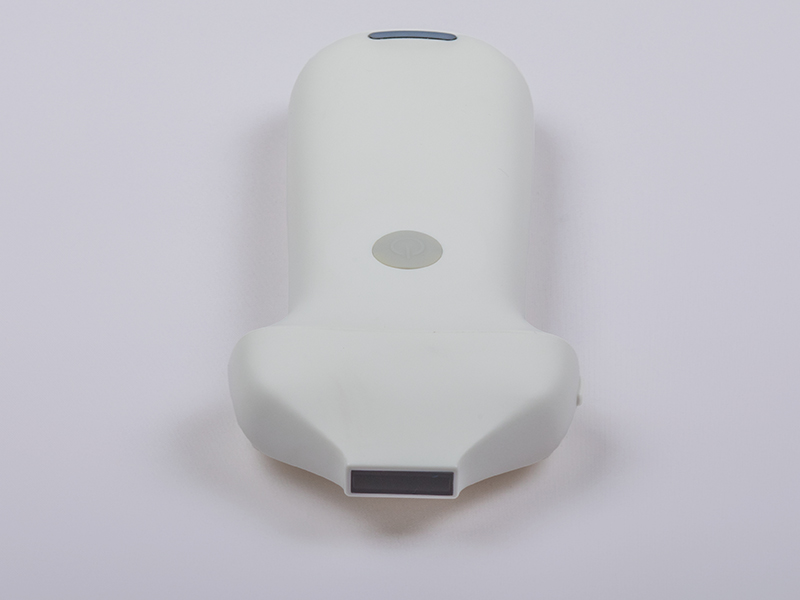

VSONO-ML3: High-Frequency Wireless Handheld Ultrasound
Precision Imaging for the Aesthetic Professional
The VSONO-ML3 is a state-of-the-art, handheld linear ultrasound scanner engineered specifically for the nuances of aesthetic medicine and dermatology. By combining ultra-high frequency imaging (up to 22MHz) with a compact, wireless design, the VSONO-ML3 empowers practitioners to visualize facial anatomy with unprecedented clarity, ensuring safer injections and superior patient outcomes.

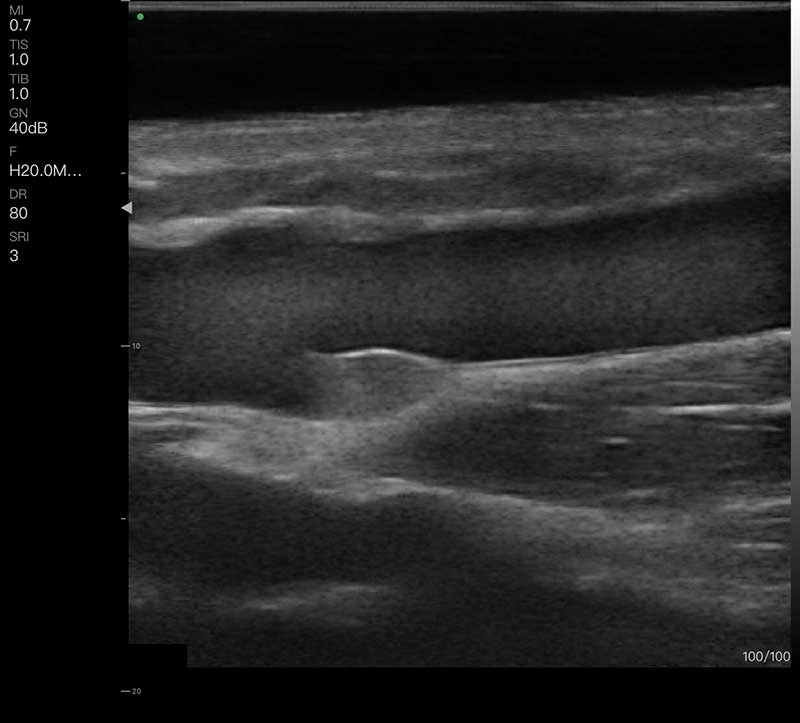

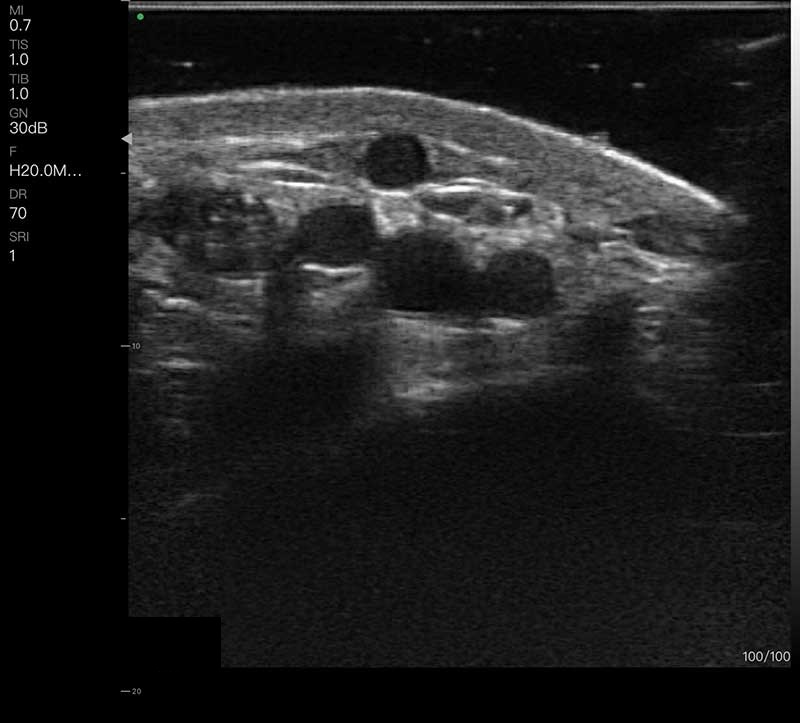

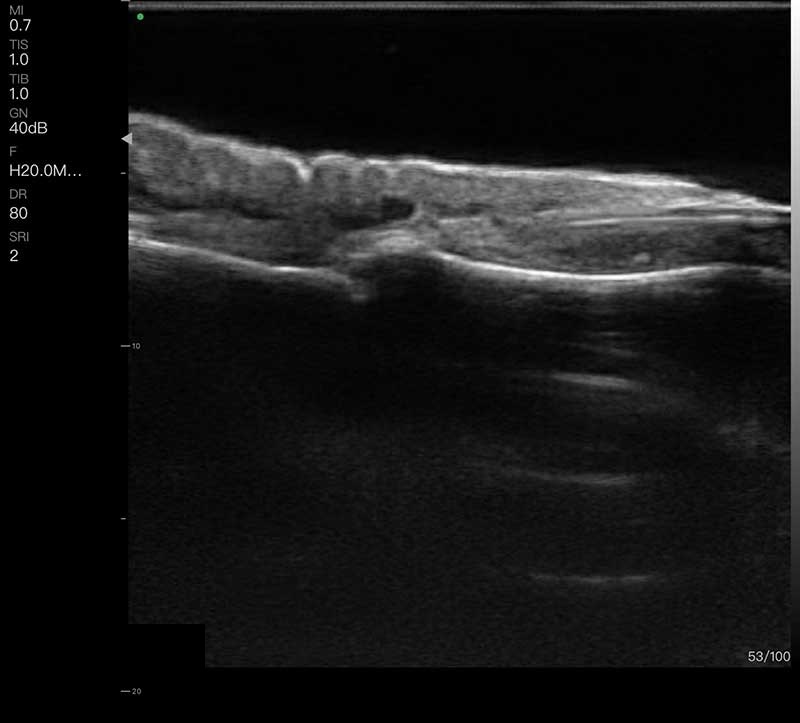

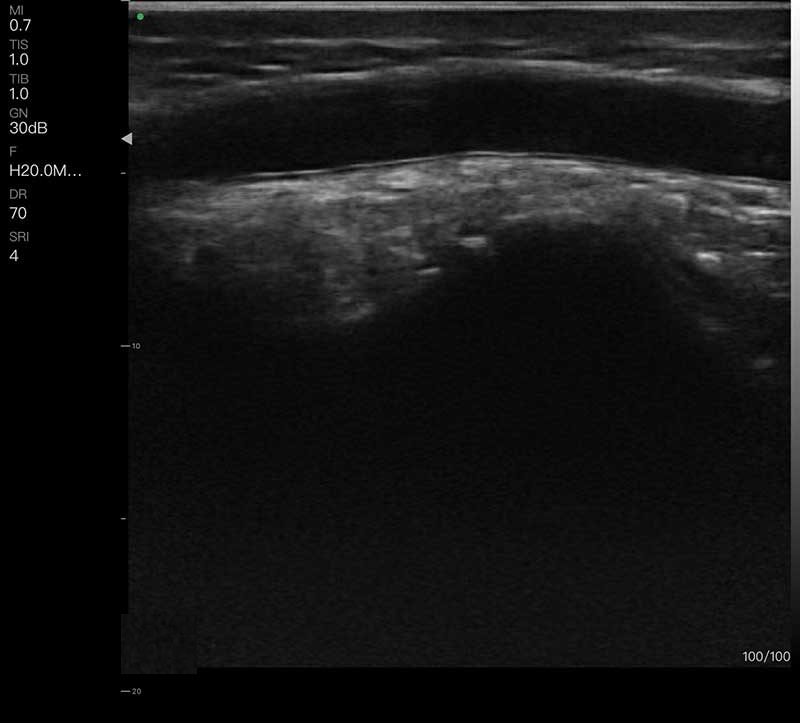

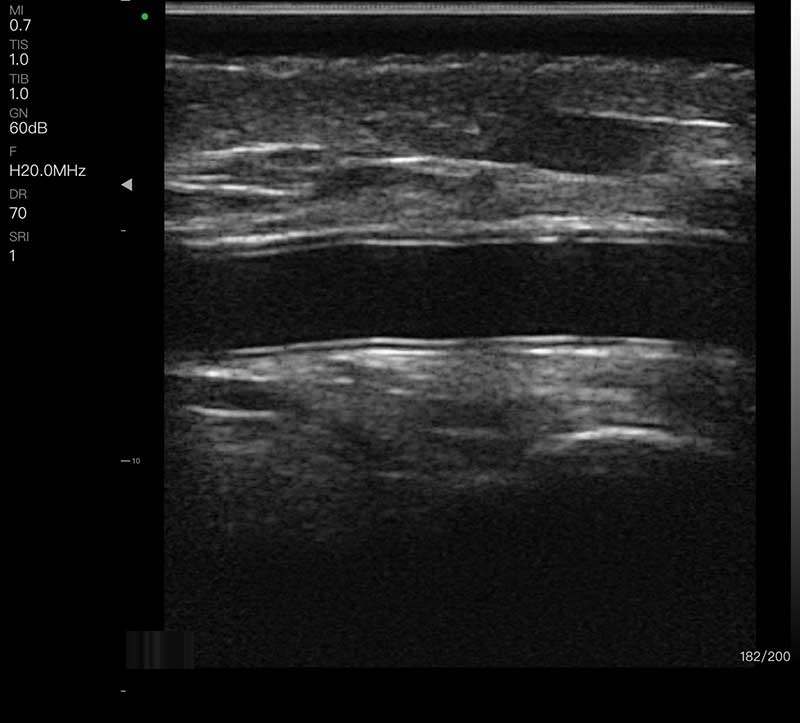

1. Ultra-High Frequency for Superficial Detail
Designed for the delicate layers of the face and skin, the VSONO-ML3 operates at 18/22MHz. Unlike standard general-purpose probes, this high frequency provides crystal-clear resolution of superficial structures within the 10mm to 25mm range.
-
Visual Clarity: Clearly distinguish the epidermis, dermis, SMAS, and fascia.
-
Filler Mapping: Visualize existing filler deposits and complications with ease.
-
192 Elements: The high-density element array ensures a crisp, noise-free image.
2. Enhanced Safety with Vascular Mapping
Vascular occlusion is the primary concern in aesthetic injectables. The VSONO-ML3 mitigates this risk with advanced Doppler capabilities.
-
Color & PDI Modes: Instantly map facial arteries and vessels to identify safe injection zones.
-
Puncture Guidance: Features built-in In-Plane and Out-Plane puncture guides to assist in precise needle placement.

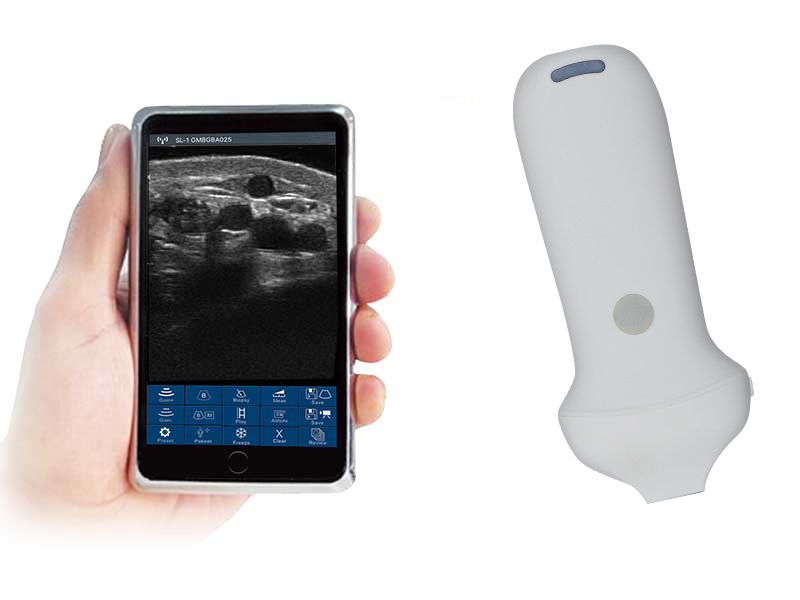

3. Wireless Freedom & “Point-of-Care” Design
Weighing only 180g, this probe is truly portable. It eliminates bulky cart-based systems, connecting seamlessly via ultra-fast 5G/2.4G WiFi to your existing iOS, Android, or Windows devices.
-
Ergonomic: Fits comfortably in the hand for long procedures.
-

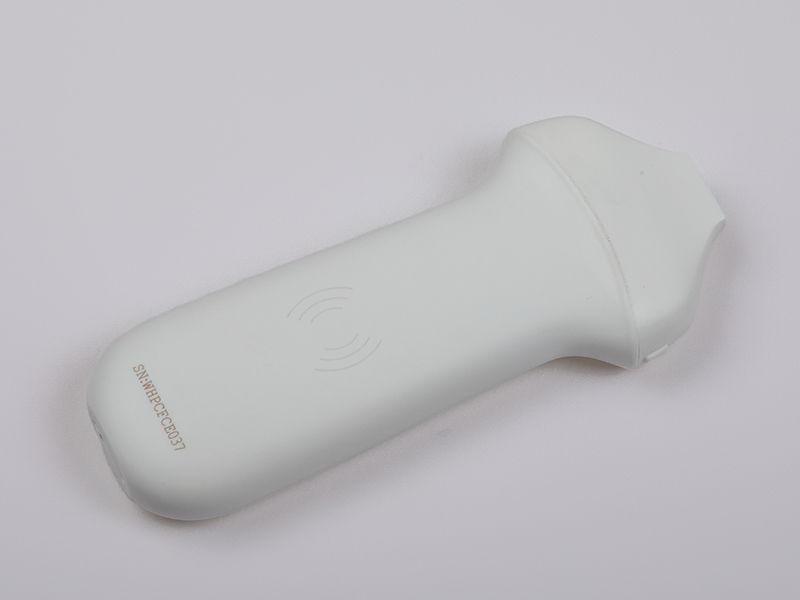

Continuous Operation: The built-in lithium battery supports 1.5 hours of continuous scanning, and the wireless charging capability allows for indefinite working time during busy clinic days.
Technical Specifications
| Category | Specification |
| Model Name | VSONO-ML3 |
| Scan Mode | Electronic Array Linear Scanning |
| Frequency | 18 / 22 MHz (High Frequency) |
| Imaging Elements | 192 Elements |
| Channels | 64 Channels |
| Scanning Depth | Adjustable: 10 / 15 / 20 / 25 mm |
| Display Modes | B, B/M, Color, PDI, PW |
| Image Adjustments | Gain (30-105db), Focus, Reverse Pulse Harmonics, Noise Reduction (5 levels), Dynamic Range (40-110) |
| Assistive Functions | In-Plane & Out-Plane Puncture Guide, Automatic Vascular Measurement |
| Connectivity | WiFi (802.11n 2.4G/5G dual-band, 450Mbps) |
| Compatibility | iOS, Android, Windows |
| Battery Life | 1.5 Hours (Extendable via Wireless Charging) |
| Dimensions & Weight | 156mm × 60mm × 20mm |
| Data Storage | JPG, PNG, MP4, DCM |
Frequently Asked Questions (FAQ)
Clinical & Application
Q: Why is the 22MHz frequency important for aesthetic medicine?
Q: Can the VSONO-ML3 detect existing fillers?
Q: Does this device help prevent vascular occlusions?
Q: What is the maximum depth this probe can scan?
Technical & Hardware
Q: Which devices is the VSONO-ML3 compatible with?
Q: How long does the battery last?
Q: Is there a lag in the image since it is wireless?
Q: Can I save images and videos to patient files?
Usage & Maintenance
Q: Is the device difficult to sanitize?
Q: Does it support guided injections?
-
