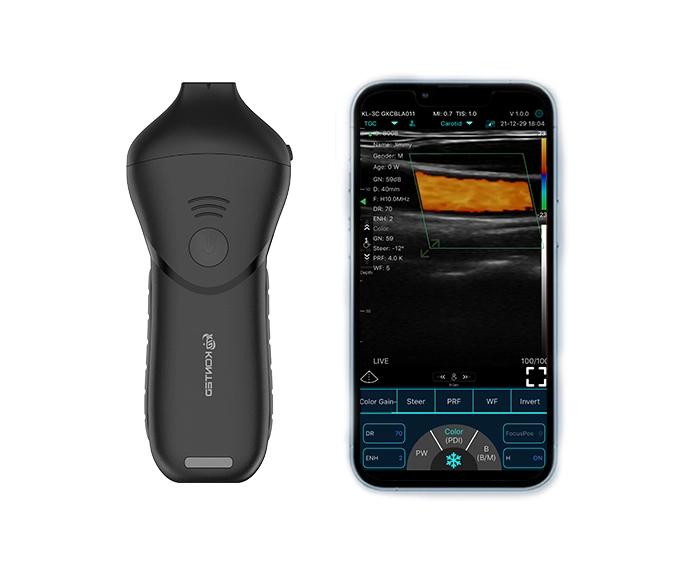

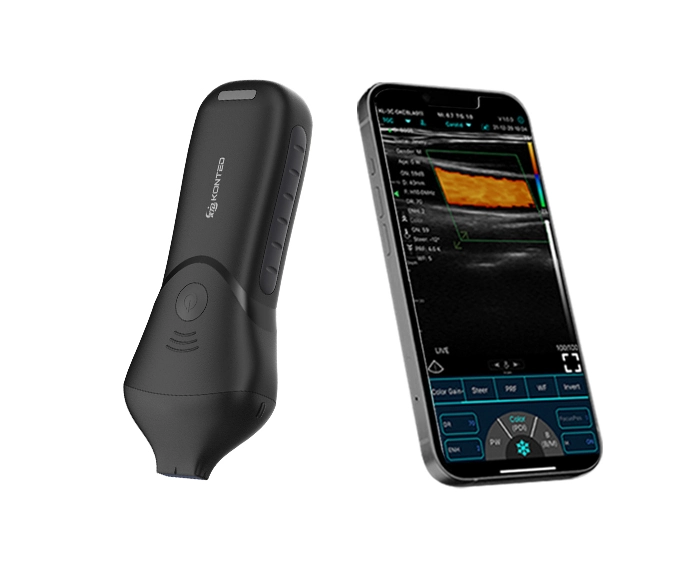

Ultra-High Frequency Handheld Facial & Superficial Ultrasound Scanner

The C10MB PRO is an advanced, ultra-high frequency (16/20 MHz) handheld wireless ultrasound scanner engineered specifically for medical professionals performing superficial anatomical imaging. Designed for facial aesthetics, plastic surgery, dermatology, and precise vascular mapping, this lightweight 223g scanner enables clinicians to visualize subcutaneous facial structures, track previously injected fillers, and identify micro-vessels as small as 1 mm at depths from 10 mm to 40 mm.

Highlights

• Ultra-High Frequency (16 / 20 MHz): Delivering exceptional near-field resolution for superficial dermatology, facial vascular mapping, and delicate injections.

• High-Density 192-Element Array: Powered by 192 elements and 64 processing channels to render high-definition B-mode, Color Doppler, and Pulsed Wave (PW) imaging.

• Vessel Mapping Precision: Clearly visualizes facial micro-vessels down to 1 mm in diameter at selectable depths (10, 20, 30, and 40 mm).

• IP68 Submersible Waterproof Enclosure: Fully waterproof housing with a dual cooling coating for reliable sterilization and prolonged scan sessions without overheating.

• No Subscription Fees: Includes the full-featured MY USG app across iOS, Android, and Windows with free lifetime updates and unlimited user support.

Description

The C10MB PRO Handheld Facial & Superficial Ultrasound Scanner sets a high standard for safety and precision in aesthetic medicine, plastic surgery, and superficial procedures. Operating at 16 MHz and 20 MHz, it provides superior image resolution required for scanning delicate anatomical structures across the face and neck—including lip injections, liquid rhinoplasty, jawline contouring, undereye treatments, and nasolabial fold fillers.

Clinicians can perform ultrasound-guided filler injections by determining exact vessel depth with certainty, drastically reducing the risk of accidental vascular occlusion or complications. The C10MB PRO also serves as an indispensable tool for evaluating previous filler placement, detecting prolonged swelling or tissue irregularities, and guiding precise hyaluronidase injections to safely dissolve compromised material.

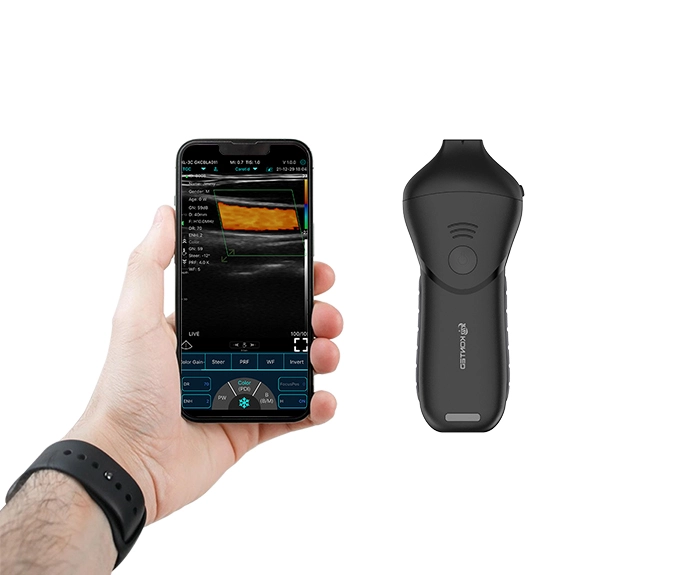

Designed for mobility and ease of use, the device connects via high-speed Wi-Fi (2.4G/5G) or USB cable with full support for scanning while charging. With its compact 24 x 6 mm footprint, anti-skid grip, and sub-230g weight, the C10MB PRO delivers high-performance imaging directly to your iPad, smartphone, or laptop.

Technical Specifications

Clinical Applications

• Ultrasound-Guided Facial Injections: Map facial arteries prior to injecting fillers or botulinum toxin in high-risk zones (glabella, nose, lips, jawline, nasolabial folds).

• Filler Evaluation & Dissolution: Identify exact product location, depth, and volume from past filler treatments; guide hyper-targeted hyaluronidase injections to dissolve nodules or vascular complications.

• Dermatology & Skin Lesion Scanning: Examine superficial skin layers, cutaneous lesions, subcutaneous masses, and inflammatory skin conditions.

• Superficial Vascular Access & Mapping: High-resolution visualization of small superficial blood vessels, superficial temporal arteries, and fine venous networks.

How to Use C10MB PRO

1. Download App: Download the free MY USG app from the App Store or Google Play (no subscription fees).

2. Connect Device: Power on the scanner and establish a connection to your mobile device or tablet via 5G Wi-Fi or USB-C.

3. Select Preset & Depth: Select your anatomical focus and adjust depth parameters between 10 mm and 40 mm based on the target layer.

4. Scan & Map: Apply standard ultrasound gel and scan the target area in B-Mode or Color Doppler to identify vessel paths and depth.

5. Guide & Record: Perform needle insertion under real-time image guidance, utilize measurement magnification tools, and export reports, images, or DICOM files directly to your clinic management system.

Frequently Asked Questions (FAQ)

Why is a 16/20 MHz frequency necessary for facial aesthetic procedures?

Higher ultrasound frequencies provide much finer spatial resolution in the top few centimeters of tissue. A 16/20 MHz probe delivers the extreme clarity needed to distinguish dermal layers, subcutaneous fat, underlying fascia, and micro-vessels under 1 mm in diameter that lower-frequency probes cannot resolve.

Are there recurring software fees or subscriptions required?

No. The accompanying MY USG app is free to download with unlimited users and lifetime software updates, making it completely subscription-free.

Can the C10MB PRO be fully immersed in disinfectant?

Yes. Featuring an IP68 waterproof rating, the scanner can be fully immersed in medical-grade liquid disinfectant solutions for thorough sterilization between patient procedures.

Does it support DICOM and electronic health record integration?

Yes. Scans, video loops, and structured reports can be saved and exported in standard JPEG, MP4, or DICOM formats for seamless integration into patient charts.
